Redtronic Infinity BB4
Redtronic Infinity BB4
Redtronic Infinity BB4
Redtronic Infinity BB4
Redtronic Infinity BB4
Redtronic Infinity BB4

Redtronic Infinity BB4

Normally Dispatched Within: Special Order Item (Non Stocked)

Delivered by DPD Local

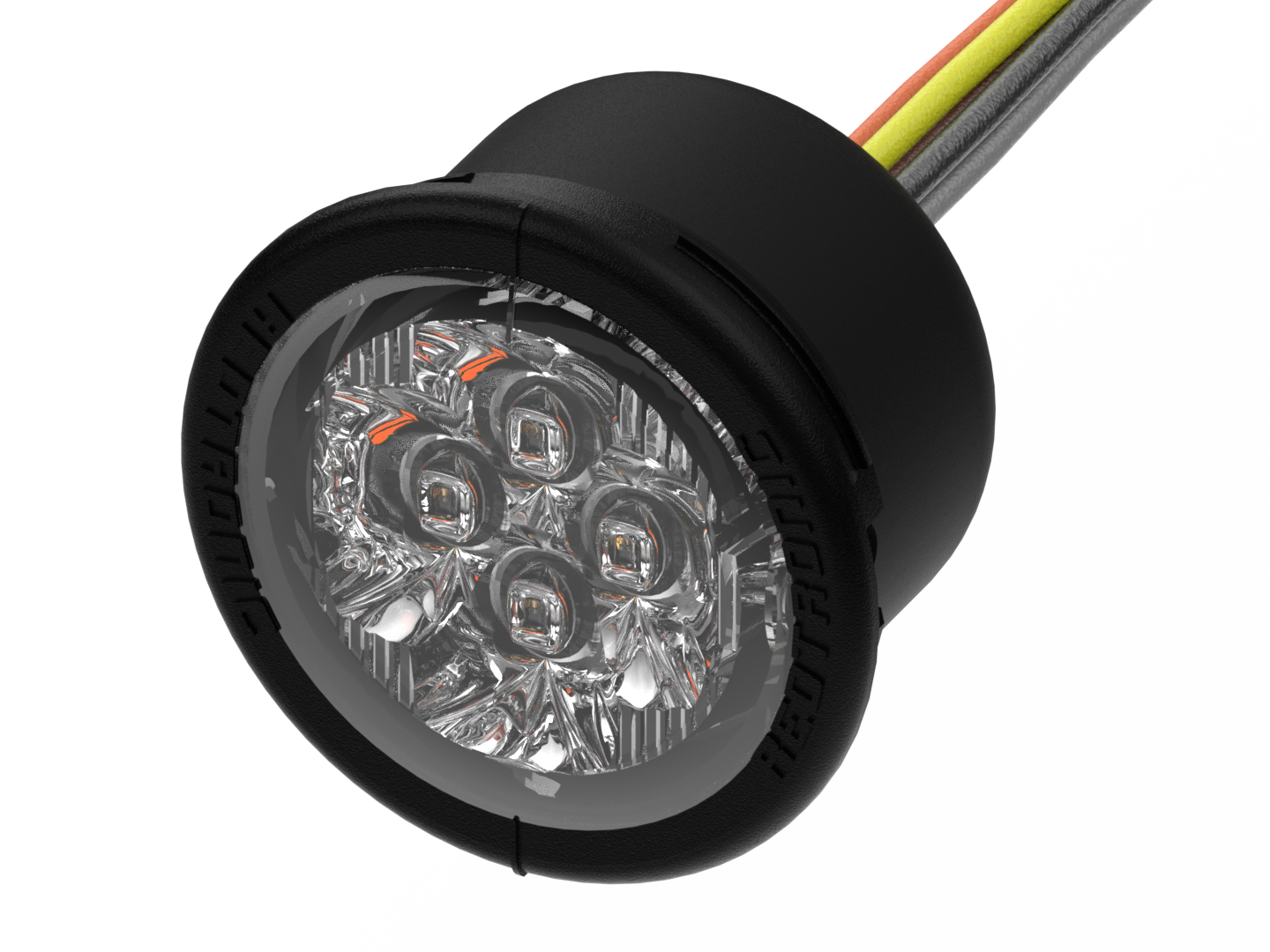

Redtronic’s BB4 is an industry first tri-colour available surface recessed mounted led directional, innovatively designed to incorporate all driver electronics in the body of the product. Available in Single &...
£66.00
£66.00
LED Colour: Amber
Optional Shroud: No Shroud
Description

Redtronic’s BB4 is an industry first tri-colour available surface recessed mounted led directional, innovatively designed to incorporate all driver electronics in the body of the product. Available in Single & Dual-Colour options to meet the needs of all application needs from amber safety/commercial vehicles to emergency services and covert vehicles. The BB4 features a strong polycarbonate lens on a aluminium body to maximise protection from debris impact and to absorb heat dispersion, accompanied also with another industry first double pop-lock grommet to ensure the BB4 is secured as if part of the original vehicle, also boasting major industry requirements such as IP69K for the toughest environments, EMC R10, ECE R65 approvals and comes as standard with 7 flash patterns including ICAO/CAP168 Airport pattern. Sync capability with other Redtronic products and manufactured in the UK – Redtronic endorse the innovative BB4 with a 2-year warranty.

USP's & Benefits
  • Directional Type: Covert Directional
  • Material Type (Lens): Ultra-strong UV stabilised polycarbonate lens (Makrolon 2407 PC)
  • Material Type (Body): Cast Aluminium Housing - Powder Coated Black (RAL9005)
  • Shape: Round
  • R65: Class I (Amber, Blue)
  • EMC: EMC/R10 Compliant
  • IP Rating: IP69K
  • CAP168/ICAO: CAP168/ICAO Airport Flash
  • Dim Mode: Night & Day (Dim mode) (50% Brightness)
  • Cruise: Yes
  • Voltage Spec: 11-32VDC
  • Operating Temperature: -40°C / +105°C
  • Flash Patterns: 7 Flash Patterns
  • Flash Patterns: Quad, Triple, Double, Single, Quad/single,       Quad/triple/double/single + CAP168 - unlock with brown to +ve for 10 seconds
  • Sync: Synchronisation with other Redtronic products
  • Warranty: 2 Year Warranty

    •

    Dimensions & Tech Spec
    • Dimensions: 28.50mm (diameter) x 22.08mm (depth) (34mm when mounted in grommet) – hole size required 32mm for grommet
    • LED Power (Watts): 8watt
    • Light Output (Lumens): Amber 457lm, Blue 317lm
    • Weight: 30g
    • Current Draw: 630mA @12V, 315mA @24V
